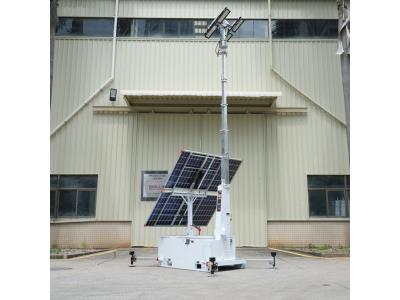

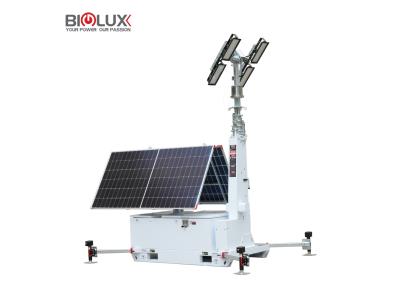

Brief Description: The HiSKID-II Solar Light Tower is a skid-mounted, off-grid lighting solution integrating a solar power system, telescopic mast, and high-efficiency LED lights. Designed for remote areas and sites without power infrastructure, it features a portable skid base for easy relocation and quick deployment, making it ideal for construction sites, outdoor events, mining areas, and emergency scenarios. Key Advantages Off-Grid Self-Sufficiency: Solar-powered with 0 fuel required, relying solely on solar energy for operation; supports up to 24 hours of continuous lighting. Flexible Deployment & Mobility: Skid base enables easy movement via forklift; adjustable outriggers adapt to uneven terrains, ensuring fast setup. Optimized Energy Collection: Dual solar panels with 180¡ã rotation and 30-60¡ã electric tilting, maximizing sun exposure and energy efficiency. Versatile Lighting Performance: 4¡Á100W/150W LED lights with 180¡ã rotation and 0-90¡ã tilting; dimming function meets diverse lighting needs. Durable & All-Weather Design: Hot-dip galvanized telescopic mast and internal wiring prevent corrosion, aging, and vandalism; dust-proof, sealed housing withstands -20¡ãC to 55¡ãC conditions. Smart & User-Friendly Operation: Control panel with timer, light-sensing, and real-time battery monitoring; intuitive design ensures easy use for first-time operators. Low Maintenance & Long Lifespan: No engines or fuel systems, minimizing upkeep; galvanized components and high-quality LEDs extend service life.

Products Details

1.Solar Panels

The solar panels boast three core capabilities: 180¡ã full rotation (for all-directional positioning), 30-60¡ã electric tilting (for precise angle tuning), and up to 1200W power rating (for robust energy output).

It delivers three key advantages: ? Flexible Adjustment (enables easy alignment with changing sun paths), ? Maximized Sun Exposure (enhances energy capture throughout the day), and ? Time-Saving Deployment (simplifies setup and positioning processes)

2.LED Lights

The LED lights have four key attributes: outdoor-use & long-lasting performance (suitable for outdoor environments), 100W/150W LED type (meets different brightness needs), energy-saving & high-efficiency (low power consumption with strong output), and stable light source (no glare for comfortable use).

It offers three main benefits: ? Avoid wire aging (protects wiring from damage), ? Preserve wire elasticity (maintains wiring performance), and ? Extended Service Life (reduces replacement frequency).

3.Built - in Wires

The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.

It delivers three critical benefits: ? weatherproof aging prevention, ? resistance against cutting or vandalism, and ? extended service life-all enabled by its galvanized sections and internal wiring protection.

4.Hot - Dip Galvanized

The solar surveillance tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.

It offers three key benefits: ? zero maintenance needed, ? extended service life, and ? all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

5. Control Panel

The control panel provides three operating modes: manual mode (with mechanical switch for direct control), timer mode (supports scheduled on/off settings), and light-sensing mode (auto-on at night and auto-off at dawn).

It offers three main benefits: ? Boosts work efficiency (reduces manual operation time), ? Cuts labor costs (minimizes manual monitoring needs), and ? Smart settings for diverse scenarios (adapts to different lighting requirements).

6.Flexible LED Lights

The flexible LED lights come with two core features: 180¡ã rotatable and 90¡ã tiltable design (for multi-angle illumination), and manual & electric versions available (to fit different operation needs).

It offers two main benefits: ? Easy on-site use (simple to adjust and operate), and ? Improved work efficiency (ensures targeted lighting for tasks).

7.Forklift Base

The forklift base is equipped with large fork holes, 4 adjustable jacks, and 4 reinforced lifting rings-these structural designs lay the foundation for easy handling and terrain adaptability.

It offers two practical benefits: ? fork/lift for easy movement (facilitated by large fork holes and reinforced lifting rings) and ? flexible adjustment suits varied terrains (enabled by the 4 adjustable jacks).

Products Specifications

Product Models: BL2P-G7MHDL0400, BL2P-L7MHDL0400, BL2P-G9EHDL0600, BL2P-L9EHDL0600

Solar Panel Type: Monocrystalline Silicon (Dual Facial), 180¡ã Manual Rotating, 30¡ã-60¡ã Electric Tilting

Solar Panel Wattage: 2¡Á450W/2¡Á600W

Controller: 50A MPPT/45A MPPT (With Remote Battery Monitoring)

LED Light Configuration: 4¡Á100W/4¡Á150W LED lights

Light Features: With manual/electric rotation and tilting, dimming

Lighting Time: 24 Hours/16 Hours

Solar Charging Time: 8.5 Hours (Theoretical)

Battery: GEL (9600Wh/12000Wh) / LFP (8038Wh/14336Wh), DC24V

Battery AC Charger: 1.5kW, AC110V/230V

Telescopic Mast: 6.5 Meters (Manual Lifting Winch) / 8.5 Meters (Electric Lifting Winch), Hot-dip Galvanized Steel, Built in Wiring

Trailer Type: US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forklift Holes And Lift Rings

Outrigger: 4pcs Manual Outriggers, Foldable, Y Shape

Working Temperature: -20¡æ-55¡æ

Dimensions: 3522¡Á3246¡Á6977mm/4037¡Á3246¡Á9575mm(Extended)/3522¡Á1630¡Á2625mm/4037¡Á1630¡Á3255mm(Retracted)

Gross Weight: 953KG/1059KG

Container Loading: 20GP (6 units/5 units), 40HQ (12 Units)

Application Scenarios: Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.

Application Scenarios

Packaging & Logistics

Packaging Details

* Sample Shipment: 1 solar light tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and lights fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 12 units fit perfectly into a 40HQ container.

Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.

Company Profile

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.

These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.

As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

Certificate Of Honor

Customer Visit

FAQ

Can I customize the LOGO and colors on your HiSKID solar trailer?

Yes, Color and LOGO can be customized.

Is the tilting and rotation of the LED light manual?

Yes, it is manual, but it can also be upgraded to electric for more convenient use.

How long can the light tower illuminate?

The specific lighting hours depends on the configuration of the LED power and battery capacity. For example, with a 400W LED light and a 12kWh battery, the maximum lighting time can reach 24 hours.

What's the production lead time?

Standard sample is generally shipped within 2 weeks, batch orders are generally about 1 month. Please kindly consult our sales team for specifics.

What additional functions does your light tower offer?

Our light tower also supports real - time battery capacity monitoring, timer - controlled light switching, and a dimming function to adjust light brightness.

Is there a lithium battery option?

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
