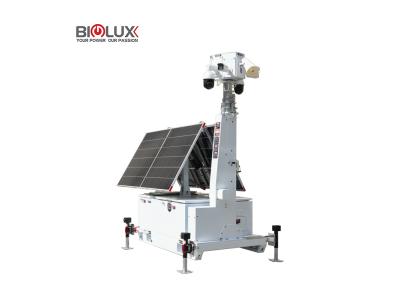

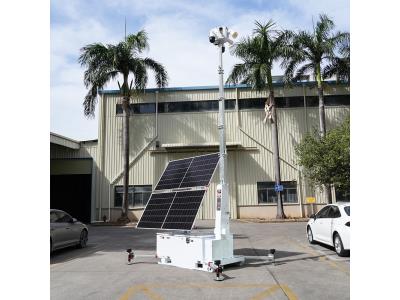

Product Brief HiSKID-II is a skid-mounted, mobile off-grid solar CCTV tower designed for remote and temporary security monitoring. It integrates solar panels, high-capacity battery, telescopic mast, and CCTV box with an 8-port POE switch. Equipped with a skid base, it enables rapid deployment and flexible relocation, delivering 24/7 grid-free surveillance for remote sites, construction zones, and emergency scenarios. Key Advantages Terrain-Adaptive Skid Base Design Features 4 adjustable jacks and a reinforced skid base, ensuring stable placement on uneven terrains while supporting easy forklift movement and hoisting via integrated lifting rings. Dual Mast & Power Customization Offers 6.5m manual/8.5m electric mast options and two solar panel wattages paired with GEL/LFP battery variants, tailoring to different height and power demands for diverse surveillance scenarios. All-Weather Durability & Protection Boasts IP65 waterproof rating, hot-dip galvanized components, and built-in wiring resistant to corrosion, vandalism, and heavy rain for reliable operation in harsh outdoor conditions. Plug-and-Play Surveillance Integration CCTV box comes with an 8-port POE switch, DC 24V/48V & AC 220V/110V compatibility, and a removable mounting plate, supporting up to 6 cameras for hassle-free installation and setup. Practical On-Site Storage 8 sq ft oversized trunk provides ample space for tools, cameras, and accessories, with reserved expansion capacity to meet future storage needs, reducing on-site logistics burdens. Efficient Energy Harvest & Runtime Dual bifacial solar panels maximize sunlight capture from both sides, paired with MPPT controllers for high energy conversion, ensuring 72 hours of continuous runtime under 90W-133W loads.

Products Details

1.Solar Panels

The solar panels boast three core capabilities: 180¡ã full rotation (for all-directional positioning), 30-60¡ã electric tilting (for precise angle tuning), and up to 1200W power rating (for robust energy output).

It delivers three key advantages: ? Flexible Adjustment (enables easy alignment with changing sun paths), ? Maximized Sun Exposure (enhances energy capture throughout the day), and ? Time-Saving Deployment (simplifies setup and positioning processes)

2.CCTV Box

The CCTV Box has a six-sided structure, removable mounting plate, 360¡ã rotatable design, rear-opened access, internal cooling fan, and 4 strobe lights. These designs optimize its adaptability and functionality for surveillance needs.

It offers two main benefits: faster on-site deployment (streamlining setup workflows) and easy installation & maintenance (simplifying camera mounting/upkeep via the removable plate and rear access).

3.Built - in Wires

The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.

It delivers three critical benefits: ? weatherproof aging prevention, ? resistance against cutting or vandalism, and ? extended service life-all enabled by its galvanized sections and internal wiring protection.

4.Hot - Dip Galvanized

The solar surveillance tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.

It offers three key benefits: ? zero maintenance needed, ? extended service life, and ? all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

5.Waterproof

The solar tower has waterproof performance (IP65 waterproof equivalent), along with enhanced joint sealing and blind hole fasteners-these designs reinforce its water-resistant structure for outdoor use.

It offers three core benefits: ? 100% moisture protection to block water intrusion, ? an all-weather sealed cabin for consistent internal dryness, and ? the ability to keep running in downpours, ensuring stable operation in wet conditions.

6.Oversized Trunk

The mobile solar trailer comes with an oversized trunk (extra large trunk) that boasts 8 square ft of capacity, offering sufficient storage space for on-site essentials.

It provides two practical benefits: ? holds tools and cameras to support daily operational needs, and ? has reserved expansion space to accommodate potential future storage requirements.

Forklift Base

The forklift base is equipped with large fork holes, 4 adjustable jacks, and 4 reinforced lifting rings-these structural designs lay the foundation for easy handling and terrain adaptability.

It offers two practical benefits: ? fork/lift for easy movement (facilitated by large fork holes and reinforced lifting rings) and ? flexible adjustment suits varied terrains (enabled by the 4 adjustable jacks).

Products Specifications

Application Scenarios

Packaging & Logistics

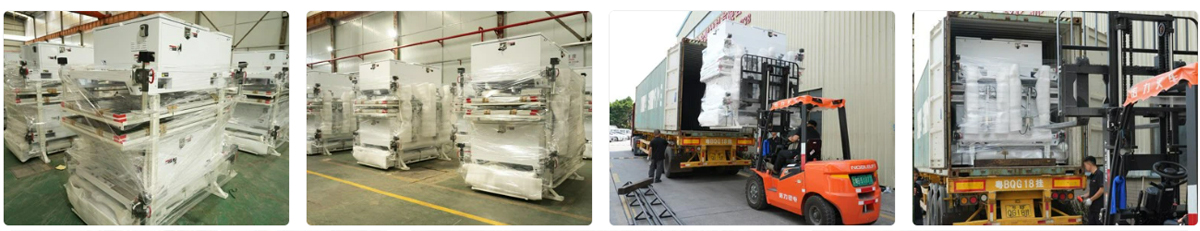

Packaging Details

* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.

 * Bulk Shipping: 6 units can be loaded into a 20GP container. 14 units fit perfectly into a 40HQ container.

Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.

Company Profile

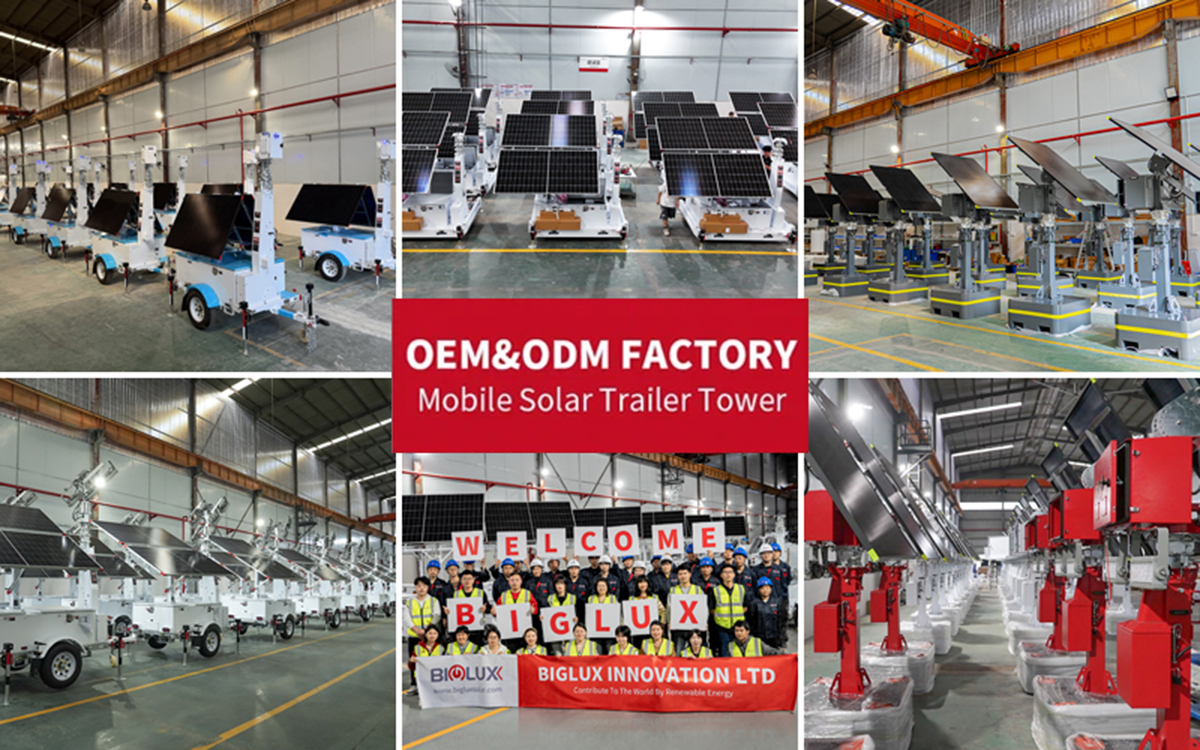

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.

These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.

As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

Certificate Of Honor

Customer Visit

FAQ

Can I customize the LOGO and colors on your HiSKID solar trailer?

Yes, Color and LOGO can be customized.

Does the solar trailer include a CCTV system?

No, most clients prefer buying a bare trailer and installing cameras locally. Our CCTV box equip POE for easy connection, with DC 24V/48V & AC 220V/110V options, ensure you can plug-and-play. We also offer Hikvision cameras + pre-installation service if you needed.

Do you provide shipping services?

Yes. For North America, we can provide door-to-door (DDP) service. For the Middle East/Europe/others, we generally provide factory-to-port (CIF) service.

What's the production lead time?

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can the HiSKID trailer hold?

Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.

Is there a lithium battery option?

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
