Product Brief: HiSOLO is a mobile, off-grid solar light tower engineered for outdoor illumination in temporary or remote scenarios. It integrates dual bifacial solar panels, high-output LED floodlights, large-capacity batteries, and a 6.5m manual/8.5m electric telescopic mast. Featuring a US/EU/AU standard single-axle trailer and smart control functions, it delivers silent, maintenance-free 24/7 lighting, ideal for construction sites, mining areas, emergency scenes, and rental services. Key Advantages: Zero Fuel & Low-Cost Operation: Solar-powered design eliminates fuel expenses and refueling needs; maintenance-free components reduce long-term operational costs compared to diesel-powered towers. Flexible Illumination & Energy Harvest: LED lights and solar panels adapt to diverse lighting angles and sun paths, maximizing light coverage (up to 90,000 lm) and energy conversion. Long-Lasting & Stable Lighting: High-capacity batteries support up to 24 hours of continuous illumination; IP65 waterproof/dust-proof LED lights ensure reliable performance in harsh outdoor conditions. Smart & User-Friendly Control: Equipped with timer, light-sensing, dimming functions, and real-time battery monitoring; intuitive control panel enables one-touch operation, suitable for untrained users. Rugged Durability & Vandalism Resistance: Hot-dip galvanized mast and built-in wiring resist corrosion, vandalism, and weathering; sealed housing with separate air inlets/outlets balances dust-proofing and heat dissipation. Easy Mobility & Deployment: Trailer design with foldable tow bar, forklift holes, and lifting rings allows convenient transportation and rapid setup; 4 foldable Y-shaped outriggers ensure stable placement on uneven terrains.

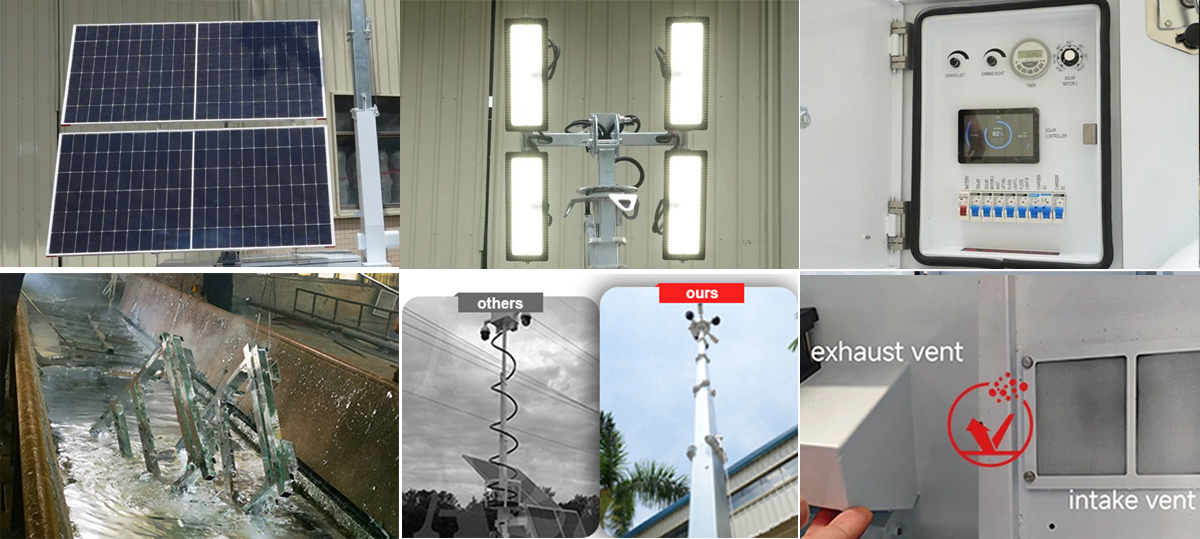

Products Details

1.Solar Panels

The solar panels support 180¡ã full rotation and 30¡ã -60¡ã electric tilt, with a power rating of up to 1200W. This design can flexibly adjust according to the direction of sunlight to achieve optimal energy collection.

They deliver four key benefits: ? flexible adjustment to adapt to sun movement, ? maximized sun exposure for efficient energy generation, ? time-saving deployment for quick setup, and ? 0 fuel, self-sufficient operation (relying solely on solar energy, no external fuel needed).

2.LED Lights

The LED lights on the solar light tower support 360¡ã full rotation and 0¡ã -90¡ã tiltable adjustment, available in configurations of up to 4*150W LED lights. They also provide up to 24 hours of continuous lighting for extended outdoor use.

These features bring two core benefits: ? flexible adjustment to fit diverse lighting needs (e.g., construction sites, parking lots) and ? stable light source for consistent, long-duration illumination that meets operational requirements.

3.Control Panel

The control panel of the solar light tower includes three key functions: timed switch (for scheduled lighting on/off), brightness control (to adjust light intensity), and battery capacity display (to monitor power status in real time).

It offers three user-centric benefits: ? simple operation (intuitive functions reduce learning costs), ? user-friendly design (easy to navigate even for first-time users), and ? zero failure rate (reliable performance suited for solar light tower scenarios).

4.Built - in Wires

The telescopic mast comes with built-in wires (internal wiring), supports up to 9 meters height, and has each section treated with hot-dip galvanization. These structural designs lay a solid foundation for its durability and functionality.

It delivers three critical benefits: ? weatherproof aging prevention, ? resistance against cutting or vandalism, and ? extended service life-all enabled by its galvanized sections and internal wiring protection.

5.Hot - Dip Galvanized

The solar lighting tower's key parts use hot-dip galvanization, which is 3x thicker than electroplating. This design ensures high corrosion resistance against outdoor wear and rust.

It offers three key benefits: ? zero maintenance needed, ? extended service life, and ? all-weather performance-adapting to harsh conditions like humidity, salt spray, and extreme temperatures.

6.Dust - Proof

The trailer features: dust-proof performance, paired with a separate air inlet/outlet, sealed housing, and a high-power cooling fan-these components work together to balance dust resistance and heat dissipation.

It delivers two core benefits: ? ventilation & dust-proof (the separate air inlet/outlet and cooling fan ensure airflow while blocking dust), and ? isolate external environment (the sealed housing keeps out external dust and debris).

Products Specifications

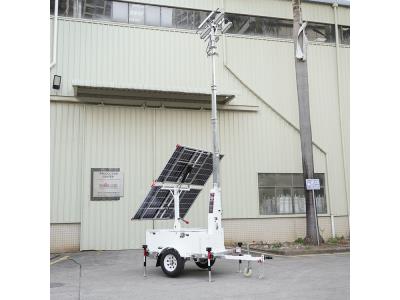

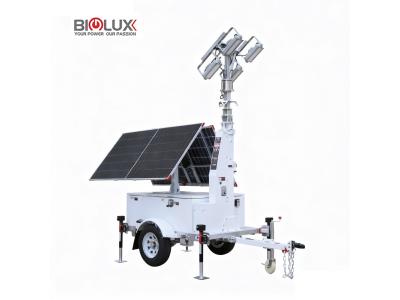

Product Name: HiSOLO Mobile Solar Light Trailer Tower

Product Models: BL2P-G7MHSL0400, BL2P-L7MHSL0400, BL2P-G9EHSL0600, BL2P-L9EHSL0600

Solar Panel Type: Monocrystalline Silicon Type, Dual Facial, 180¡ã Manual Rotating, 30¡ã-60¡ã Electric tilting

Solar Panel Wattage: 2*450W/2*600W

Controller: 50A MPPT/45A MPPT (With Remote Battery Monitoring)

LED Light: 4*100W/4*150W

Light Type: LED 150 lm/W (Luminous Efficacy), Outdoor floodlight, IP65

Total Luminous Flux: 60,000 lm/90,000 lm

Smart Functions: Timer, Light-Sensing, Dimming / Timer, Light-Sensing, Dimming, Manual/Automatic Adjustable Knob

Light Rotation & Tilting: Manual/Electric

Lighting Time: 16 hours at full brightness

Solar Charging Time: 9 hours/10 hours (Estimated)

Battery: GEL (9600Wh/12000Wh) / LFP (8038Wh/14336Wh), DC 24V

Battery AC Charger: 1.5kW, AC110V/230V

Telescopic Mast: 6.5 Meters, Manual Lifting Winch / 8.5 Meters, Electric Lifting Winch, Hot-dip Galvanized Steel, Built in Wiring

Trailer Type: US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forklift Holes And Lift Rings

Outrigger: 4pcs Manual Outriggers, Foldable, Y Shape

Working Temperature: -20¡æ-55¡æ

Extended Dimensions: 3522*3246*7262mm/4037*3246*9860mm

Retracted Dimensions: 3522*1630*2910mm/4037*1630*3610mm

Gross Weight: 1020KG/1140KG

Container Loading: 20GP (6 units/5 units), 40HQ (12 Units)

Application Scenarios: Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on.

Product Comparison

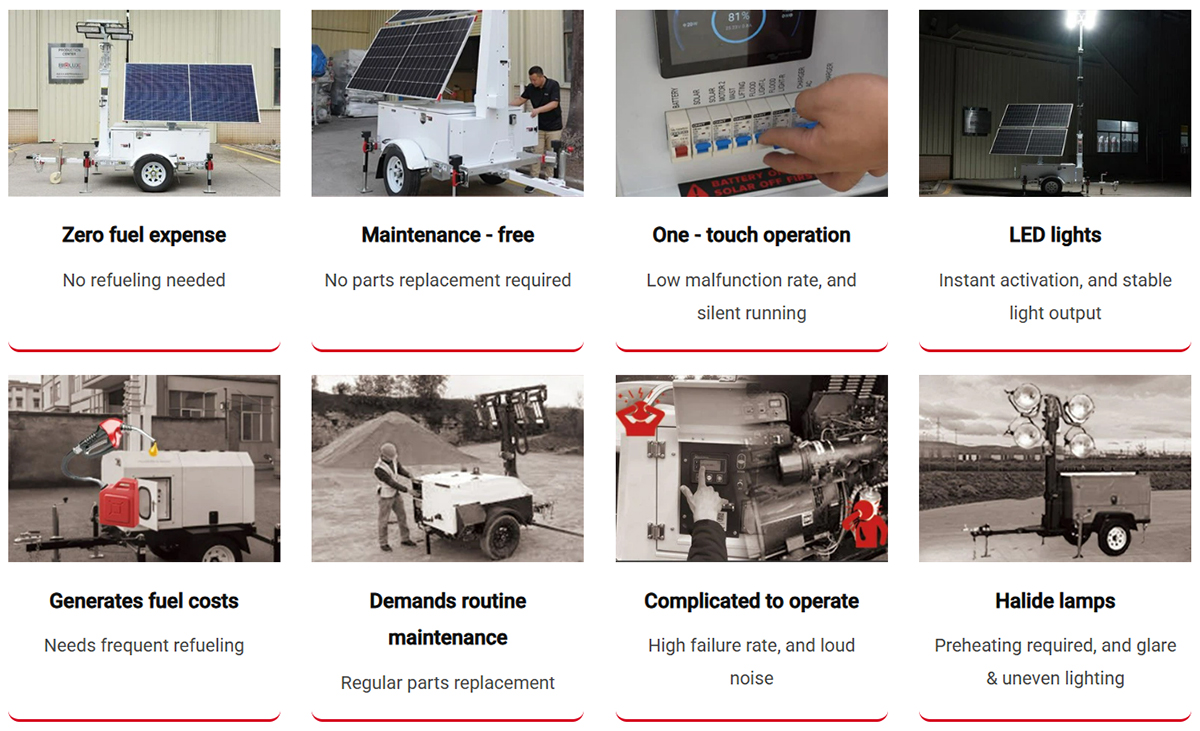

Light Tower: Solar-Powered vs. Diesel-Powered

Solar Light Tower:

The solar light tower has zero fuel expense and no refueling needed, featuring maintenance-free performance with no parts replacement required; it supports one-touch operation, boasting a low malfunction rate and silent running. Equipped with LED lights, it enables instant activation and delivers stable light output.

Diesel Light Tower:

The diesel light tower generates fuel costs and needs frequent refueling, demanding routine maintenance and regular parts replacement; it is complicated to operate, with a high failure rate and loud noise. Equipped with halide lamps, it requires preheating and produces glare as well as uneven lighting.

Application Scenarios

Packaging & Logistics

Packaging Details

* Sample Shipment: 1 solar light tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and light fixtures.

 * Bulk Shipping: 6/5 units can be loaded into a 20GP container. 12 units fit perfectly into a 40HQ container.

Logistics Highlights

We handle every step with precision-from using forklifts to load the well - packed solar lighting towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.

Company Profile

BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.

These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.

As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.

Certificate Of Honor

Customer Visit

FAQ

Can I customize the LOGO and colors on your solar trailer?

Yes, Color and LOGO can be customized.

Is the tilting and rotation of the LED light manual?

Yes, it is manual, but it can also be upgraded to electric for more convenient use.

How long can the light tower illuminate?

The specific lighting hours depends on the configuration of the LED power and battery capacity. For example, with a 400W LED light and a 12kWh battery, the maximum lighting time can reach 24 hours.

What's the production lead time?

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

What additional functions does your light tower offer?

Our light tower also supports real - time battery capacity monitoring, timer - controlled light switching, and a dimming function to adjust light brightness.

Is there a lithium battery option?

Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.

What's the warranty period?

2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
