Case packer machine for stand-up pouches. This cartoning line is designed for packaging liquid doypack bags into carton boxes. This China-made form-load-seal pouch packaging line includes a case former, a pouch loader and a case sealer.

Stand-Up Pouch Case Packer | Cartoning Line for Doypack Bags

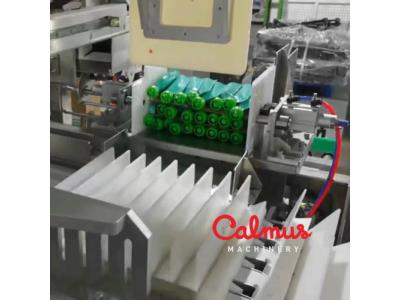

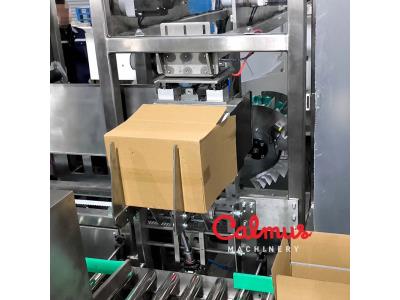

This stand-up pouch case packer is a carton packaging line designed for packaging doypack bags them into cartons according to preset patterns. The case packing system is of a split type and consists of a case erector, a pouch loader, and a case sealer. It erects fold-flat carton blanks, seals the bottoms, and conveys the cases to the pouch loader. The pouch loader is combined with a pouch collating system. The collating system includes a buffering belt conveyor, an acceleration belt conveyor, a dual-servo collator, a servo side pusher, a buffering storage unit, and an electrical controller. It organizes pouches into layers one at a time, stacks them with interlayer partition boards if more than one row in a case is required, and delivers them to the loading funnel, where the pouches are inserted into the formed case. The loaded case is then conveyed to the case sealer to be sealed at the top.

The pouch collator organizes products seamlessly, ensuring a smooth and efficient workflow. It is designed to handle pouches of up to 1 liter or 1 kilogram with precision, minimizing errors and enhancing output. The case packer for stand-up pouches automates the processes of case forming, pouch loading, and case sealing, ensuring consistent and reliable packing. Together, these systems enhance productivity and reduce operational costs, empowering your business to thrive in a fast-paced environment.

Whether you are in the food, beverage, or pharmaceutical industry, this system adapts to a wide range of doypack pouch packaging applications, offering versatility and superior performance.

Specifications:

Applicable products: pouches or doypacks up to 1 liter or 1 kilogram

Functions: collating pouches, forming cases, loading pouches, and sealing cases

Collating capacity: max. 120 pouches/min

Case packing capacity: 4-5 cases (8 pouches/row x 3 rows per case)

Compressed air: 6-8 bar

Power consumption: 8 kW
