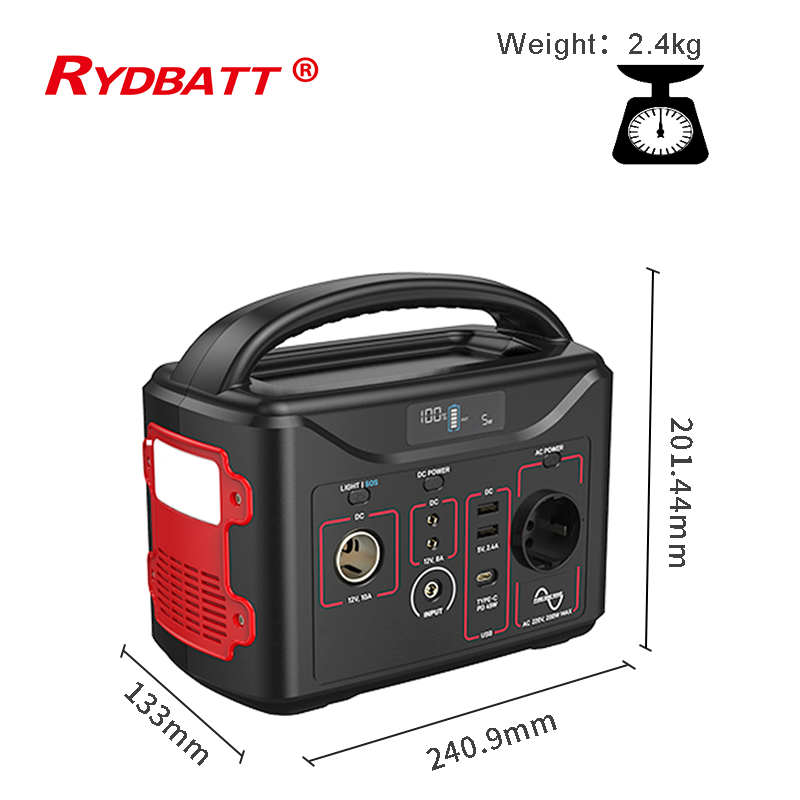

320Wh Solar Camping Power Station DC 12V AC 110V 220V Output 45W Fast Charge For Phone
Chat Now!
Send Inquiry
CCCME
Member
Recommended by CCCME
- Product Details
- Company Profile
800PCS /Day
300Wh Portable Power Station with DC 12V AC 110V 220V Output For Outdoor Camping RV 45W Fast Charge for Phone Power Supp
DC INPUT + PD INPUT/OUTPUT )
| DC INPUT | ||||
| Item | Min | Type | Max | Remark |
| Rated Input voltage | 10V | 15V | 25V | Whichever Non load or loading |
| Rated Input current | - | 3A | 3.5A | |
| Rated Input power | 45W | Automatic adjustment according input power | ||
| Ripple voltage of charging | - | - | 200mV | Test from the Input connector, oscilloscope Bandwidth setup as 20MHZ, parallel with 10uF and 0.1uF capacitor |
| Input over-current protection | - | - | - | |
| Input Lower-voltage protection | - | - | 5V | |
| Input over-voltage protection | 25V | - | 27V | The devices will stop charging If the Input voltage exceed the protection voltage |
| Input port short-circuit protection | - | - | - | Stop charging, components no damage |
| Input polarity reverse protection | - | - | - | Support(not charging if input polarity reverse) |
| Input adapter compatibility | 10-15 VDC | |||
| Solar panel charging | 18-24V with mppt function | |||
| Pass through function | The device can support discharging while the product is charging; the Type-C Output power will drop down to 36W if the product charging via DC Input port. | |||
| LCD display of charging | Display the charging power and battery capacity | |||
| Battery charging suggestion |
| |||
| ||||
| Min | Type | Max | Remark | |
| Output voltage range | -5% | 12.0V | +5% | Constant Voltage Output |
| Output current | - | 10A | - | 2*DC 5521 port and 1*Car port total output power |
| Output Power | - | 120W | - | |
Output ripple | - | - | < 200mV | Rated load,oscilloscope Bandwidth setup as 20MHZ, parallel with 10uF and 0.1uF capacitor, the ripple < 800mV while AC Output loading |
Discharging efficiency | >92% | - | - | Test requirements: test 4 model average efficiency of 25% 50% 75% 100% of full load; test at PCBA board end. |
| Over current protection | 11A | - | 13A | |
Short circuit protection | - | support | - |
DC (5521)Output features
| Min | Type | Max | Remark | |||
| Output voltage range | 10.8V | 12.0V | 14.6V | |||
| Allowable output current | - | 10A | - | |||
| Allowable output power | - | 120W | 146W | |||
| output current | - | 10A | 12A | CV 12V test | ||
| Output ripple | - | - | < 150mV | Rated load,oscilloscope Bandwidth setup as 20MHZ, parallel with 10uF and 0.1uF capacitor, the ripple < 800mV while AC Output loading | ||
| Discharging efficiency | >92% | - | - | Test requirements: test 4 model average efficiency of 25% 50% 75% 100% of full load; test at PCBA board end. | ||
| Limited current protection | 10A | - | 13A | The output will turn off if the output current is exceed specified value; the LCD blink display AC ! while Key’s LED blinking and buzzer is ringing 3 times. The product will recover work normally after cut off the loading and press key button. | ||
| Output over-voltage protection | 15V | - | 16.8V | The output will turn off when | the product | |
| doesn't work properly and the output | ||||||
| voltage is exceed specified value. | ||||||
| Short circuit protection | - | support | - | The output will turn off and the LCD blink display AC ! while Key’s LED blinking and buzzer is ringing 3 times. The product will recover work normally after cut off the loading and press key button. | ||
USB1&2 Output features
| Item | Min | Type | Max | Remark | ||||
| Output voltage range | 4.75V | 5V | 5.25V | |||||
| Allowable output current | - | 2.4A | - | |||||
| Allowable output power | 12W | |||||||
| CC Output | 2.1 | 2.4 | 2.5A | CV 4.75V Test model | ||||
| Output ripple | - | - | < 150mV | Rated load,oscilloscope Bandwidth setup as 20MHZ, parallel with 10uF and 0.1uF capacitor, | ||||
| Discharging efficiency | >92% | - | - | Test requirements: test 4 model average efficiency of 25% 50% 75% 100% of full load; test at PCBA board end. | ||||
| Limited current protection | 2.5A | 3A | The output will turn off if the output current is exceed specified value; | |||||
| Output over-voltage protection | 6.2V | - | 6.8V | The output will turn off when | the product doesn't | |||
| work properly and the output voltage is exceed | ||||||||
| specified value. | ||||||||
| Short circuit protection | - | suppor t | - | The output will turn off if the output port is short circuit by wire or external devices; the product will be automatically recovery work normally | ||||
| after cutoff the loading. | ||||||||
| Item | Min | Type | Max | Remark |
AC Sine wave output features:
| Item | Min | Type | Max | Remark |
| Output voltage range | 200V | 220V | 240V | |
| Rated output current | - | 0.9A | - | |
| Rated output Power | 200W | |||
| Output frequency | 47 Hz | 50 Hz | 53Hz | |
| Non-loading current | 600mA | |||
| Discharging efficiency | >85% | - | - | Test requirements: test 4 model average efficiency of 25% 50% 75% 100% of full load; test at PCBA board end. |
| Over loading protection | 220W | - | 300W | The output will turn off if the output power is exceed specified value; the LCD blink display AC ! while Key’s LED blinking and buzzer is ringing 3 times. The product will recover work normally after cut off the loading and press key button. |
| Over temperature protection Of AC board | 80℃ | - | 100℃ | Tthe output will turn off, the product can be recovery work normally after temperature down and press the key button |
Over temperature recovery Of AC board | 70℃ | - | 80℃ | |
| Fan start | 55℃ | 65℃ | ||
| Fan stop | 45℃ | 55℃ | ||
| Short circuit protection | - | suppor t | - | The output will turn off and the LCD blink display AC ! while Key’s LED blinking and buzzer is ringing 3 times. The product will recover work normally after cut off the loading and press key button. |
Remark: the fan will stop runing if the the AC board was temperature protection.
Automatic power off parameter:
| Item | Min | Type | Max | Remark | |
| USB1 turn-off current | 80 mA | 100 mA | |||
| USB2 turn-off current | 80 mA | 100 mA | |||
| DC turn-off current | 50mA | 80 mA | |||
| AC turn-off power | 3W | 4W | |||
| TYPE-C turn-off current | 50mA | 80mA | |||
| LED light turn-on | - | - | The automatic will be not available while LED light is turn on. |
Remark:
Above parameter value only specified for each one port, the connect more than one port, the turn-off current will count all the port of current.
The default setting is turn-on the automatic power off function,the user can press the DC + AC key button for 3S, the buzzer short ringing 2 times, the automatic power off function will be turn-off; press the DC + AC key button for 3S again, the buzzer long ringing 1 time,the automatic power off function will be recovery work normally;
The automatic power off function also be recovery work normally after re turn-on the product After turn off the product ≥10S.
3.5 LED light function:
| LED Current | - | 150mA | 250 mA | |
| LED Voltage | - | 18V | 21V | |
| LED Power | - | 3.6W | 5.25W | |
| Lamp color temp. | - | 4500K | - | |
| Lamp qty. | 12 |
4.Battery features:
| No. | content | Testing method | Remark |
| 1 | Charge cut-off voltage | 13.8V | |
| 2 | Discharge cut-off voltage | 8.8V | |
| 3 | Standard charge | Under the condition of the ambient temperature of 25±2℃, Charge the battery at constant current of 0.2C to reach 13.8V. Then charge the battery at constant 13.8V voltage until the charging current decreasing to 0.02C. | |
| 4 | Standard discharge | After the standard charging,rest for 1 hour then discharge to 8.8V@0.2C. | |
| 5 | Shipments voltage | Quantity of electricity≤30 % | |
| 6 | Maximum Charge Current | ≤12A | |
| 7 | Maximum continuous working current | ≤30A | Instantaneous current≤ 60A time≤2S |
| 8 | Rated capacity | Typical capacity:250000mAh Minimum capacity:24600mAh-5% | standard discharge after standard charge |
| 9 | Operation temperature range | charge:0~40℃ | humidity:60±25% 60±25%R.H |
| discharge:-10~40℃ | |||
| 10 | Storage temperature | ≤1 month: -20 ~ 45℃ | 60±25%R.H Best 10~25℃ for |
| ≤3 months: -10 ~ 30℃ | long-time storage | ||
| ≤1 year: 0 ~ 30℃ | |||
| 11 | Impedance | <80mΩ | |
| 12 | Weight | Approx:≈2400g |
5.Environment features:
| LCD Function | Over temperature warning, display the AC ! and buzzer ringing 3 times when temperature protection action |
| Display current total charging power, discharging power. | |
| The key button’s LED blinking during abnormal of AC i protection action | |
| LED function | key button with LED |
| Discharge compatibility | The specified devices can be quick charge available. |
| Working temperature | Charging: 0-40 °C Discharging: -10-40 °C |
| Storage temperature | -20 ~ 45℃ |
| Working Humidity | 20-90%RH |
| Storage Humidity | 10-95%RH |
Safety features:
6.1:ESD features:
| ESD |
| Contact Discharge +/-4kv, Normal recovery function allowed Air Discharge +/-8kv, Normal recovery function allowed |
Dielectric Strength :
Dielectric Strength (Hi- pot) | Inverter output L/N VS DC Input | 3000VAC 50Hz/10mA(Max)/60 Second, No breakdown and flashover |
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
Factory photo:
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
Ryder Electronics established in Shenzhen on July 18, 2005, mainly in the business of battery packs. In 2009 the company passed ISO9001 and improved the product quality standard to fulfill the high-end requirements from our customers.
In 2012, Ryder Electronics moved to a new facility and expend the production capacity, the Productivity improved nearly 10 times than before.
In 2013, Ryder Electronics imported ERP (SAP) system to supervise order execution process.
In 2017, Ryder Electronics expanded the SMT, imported high-speed patch machine from Germany.
Until now the factory grows into a modern enterprise which integrated injection molding, PCB designing, SMT and battery pack assembling services.
In 2018 the company passed ISO14001certification, introduced automated battery production line to further improve the production quality and capacity.
