ZONTES ZT350-VX

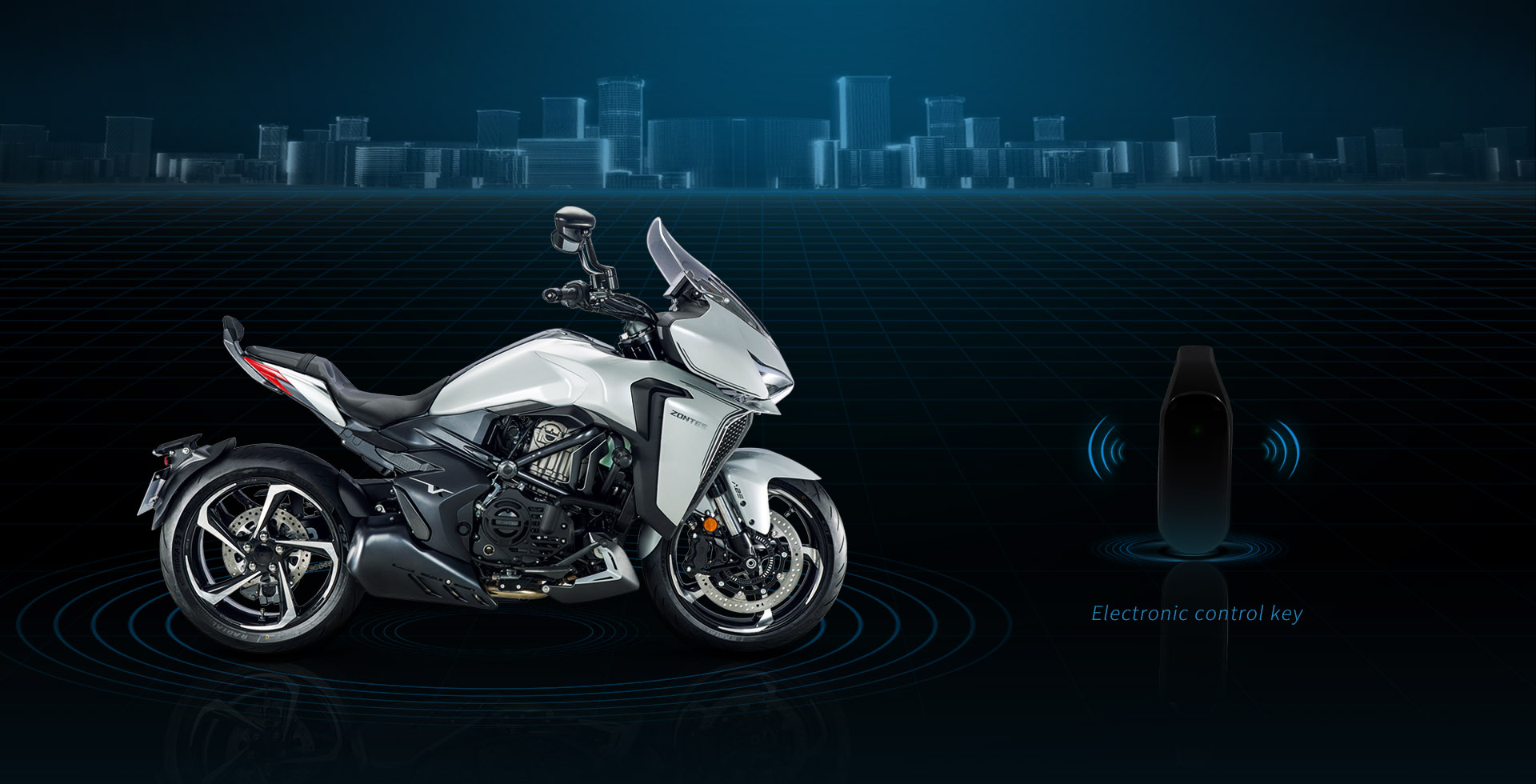

Gen 2.5 Keyless Control System

With advanced encryption technology, the Gen 2.5 Keyless Control System performs well in anti-theft protection, and induction key fob is delicate and exquisite. The portable key fob can unlock the motorcycle within 1.5m away and lock it beyond this distance through inductiveness, keeping the transponder in a backpack or pocket with no need for taking it out. It avoids the hassle of using key to unlock the motorcycle and is easy and convenient to use. The whole motorcycle adopts the electronic lock, which brings the motorcyclist a more wonderful experience. The Gen 2.5 Keyless Control System is IP67 waterproof, and equipped with a better built-in HF antenna, enhancing the sensitivity of the system. It also has a built-in chip sensor, enabling it to respond to and unlock the motorcycle when it is close to the lower right side of the seat even if its battery is removed or dead.

Aluminum alloy single rocker arm

The special technology of integrated forming originates from the independent casting of Tayo (Guangdong Tayo Motorcycle Technology Co., Ltd). Through the combination of material and casting technology, the flexibility of aluminium alloy is close to that of steel tube. It is very difficult to break in bending and torsion. The characteristics of light weight and good rigidity of aluminium alloy are brought into full play. At the same time, the eccentric shaft and needle bearing are adopted to replace the load-bearing state of double rocker arm. The beautiful, practical and bond shape, improves the overall appearance of the car comfort, highlights the high-end gentleman temperament, but also mixes with a bit of enduring wild atmosphere. Let you not only be as elegant as a gentleman, but also as gallop as a cheetah, free heart

Mono shock absorber with linkage system

1. The lever ratio gradually increases with the stroke of the rear wheels. The linkage system has the characteristics of a progressive spring that can become "soft" under weak impact and "hard" under strong impact.2. The system uses lever amplification without increasing the ground clearance and buffer stroke to increase the buffer stroke of the rear wheel.3. The arrangement of parts is relatively compact which improves the handling and stability of the scooter.4. The mono shock absorber adopts the design of the built-in airbag filled with high-pressure nitrogen to reduce the hydraulic oil temperature; high-speed driving can provide greater restoring damping force. The high-pressure nitrogen in the airbag can also change the air spring characteristics inside the shock absorber. The design is comfort-oriented£¬the spring preload is small and the movement stroke is enlarged; the riding comfort is improved and the long-distance travel is not fatigued.

TFT full color LCD screen instrument

The full virtual HD HB TFT full color LCD IPS panel has four types of personalized theme interfaces. It has functions such as interconnection with mobile phones, navigation screen sharing, screen mirroring, Bluetooth music, phone answering, and automatic adjustment of backlight. It can also monitor the driving data, vehicle failure, tire temperature and air pressure in real time during the drive to ensure driving safety.

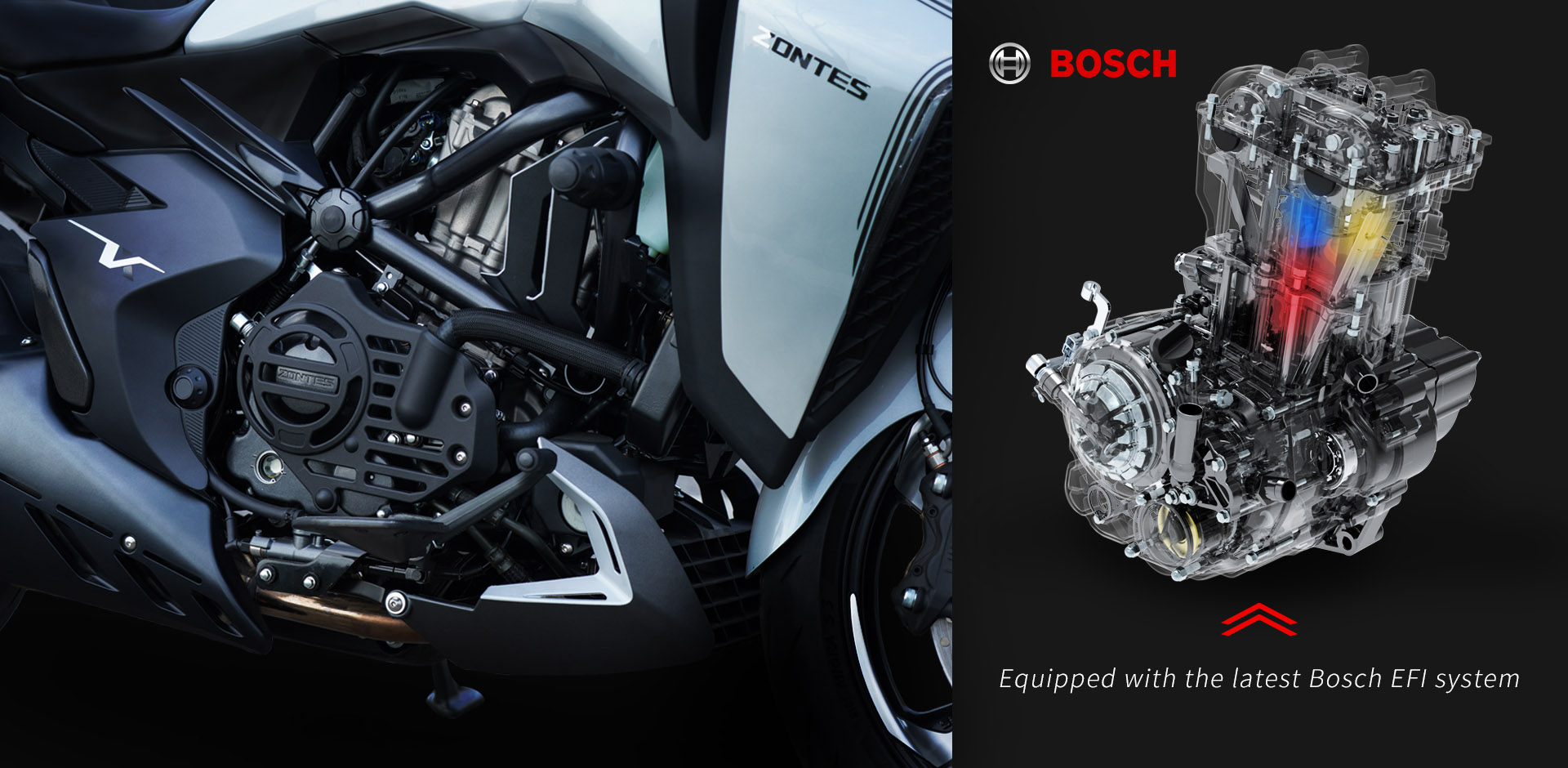

BOSCH EFI system

The latest Bosch EFI system integrates functions such as headlight control, fan control, and sports & fuel-saving mode, which is equivalent to a comprehensive optimization of thefuel economy and operating quality.

High power magneto

The power generation of high-power magneto is increased; the temperature rise is reduced and the service life is longer; the weight of the magneto rotor is reduced, which further improves the engine vibration and power output; the battery matched with the high-power magneto has greater storage capacity.

10AH gel battery

Large capacity and good at low temperature performance

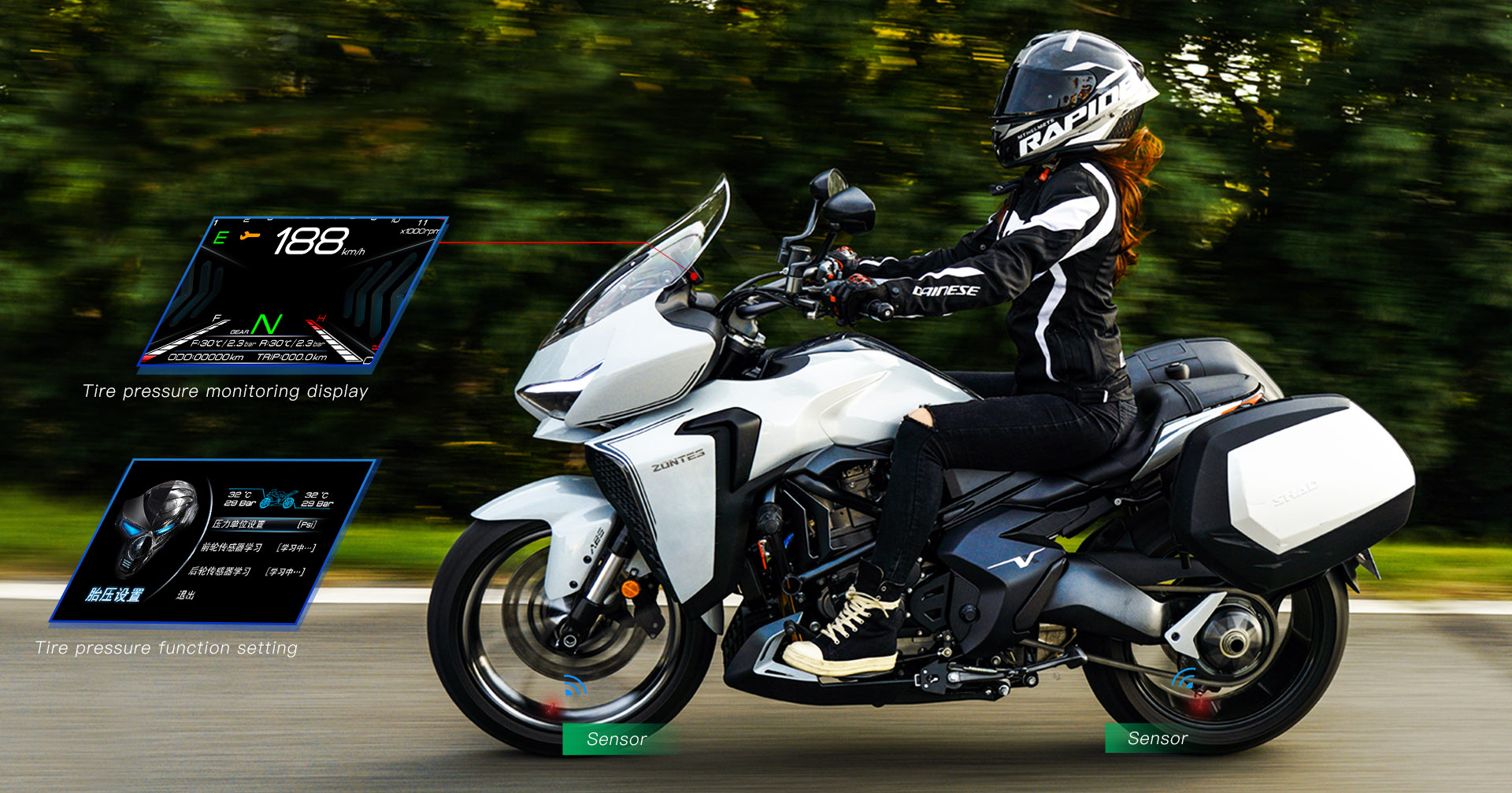

Tire pressure monitoring system

When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.

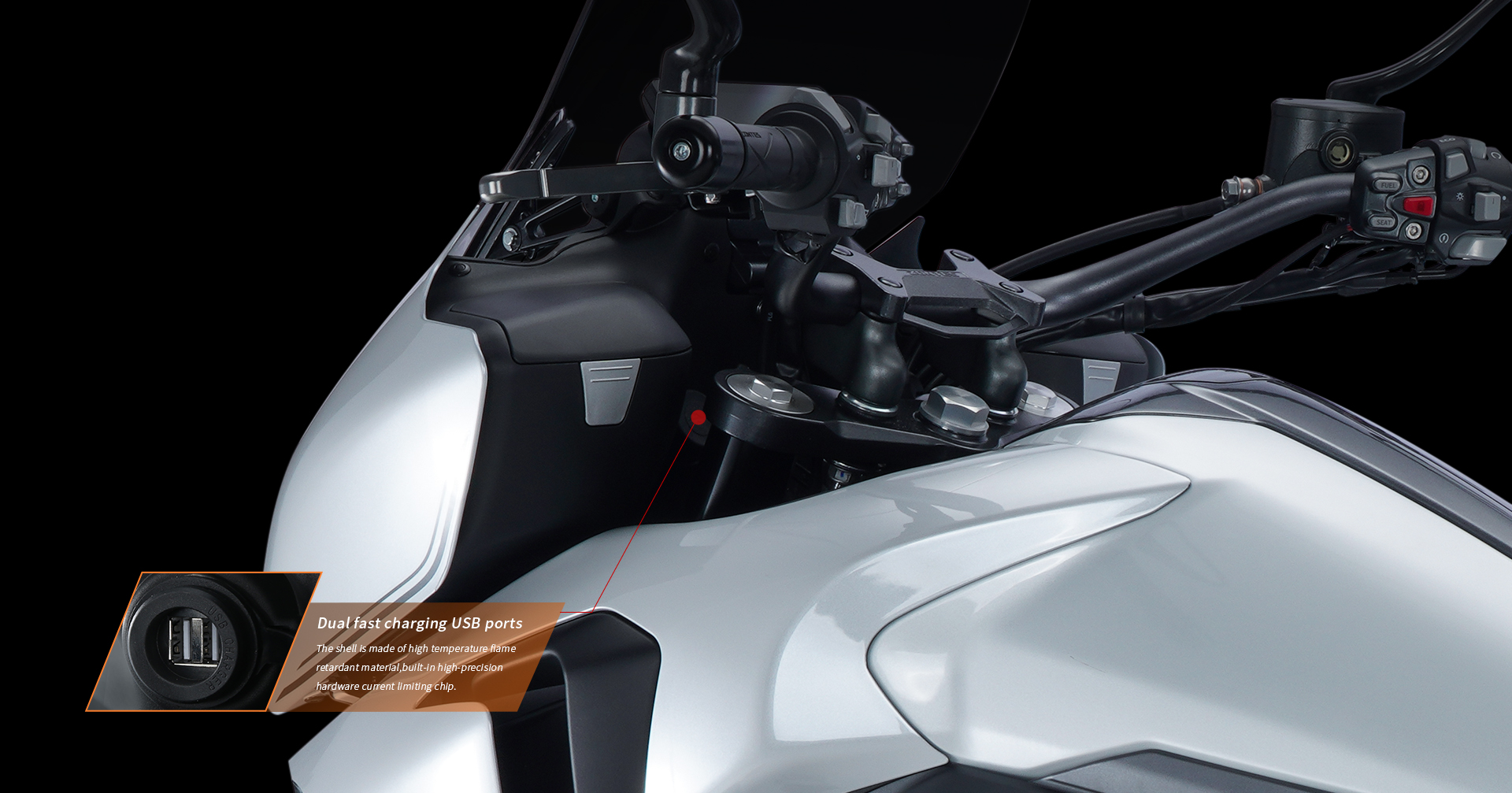

Dual fast charging USB ports

The USB charger (fast charging version) provides two USB output ports that support QC3.0 fast chargingprotocol for riders. During fast charging, the output power of a single port can reach 18W. The shell is made of high temperature flame retardant material, built-in high-precision hardware current limiting chip, which can ensure that each ports works within the safe current range, effectively preventing the occurrence of output overcurrent, input overvoltage, output short circuit, etc., greatly improving safety.

Electric function

Traditional keys have been eclipsed by the electric gasoline tank cover, seat cushion lock and head lock. Buttons are distributed on the left and the right handlebars, which facilitates the motorcyclist to start by one press.

New seat cushion leather pattern

The new foam materialis very soft, and at the same time, it is re-matched with higher-grade leather, which is to increase the friction between the clothing fabric and the seat cushion.A new convex-shaped leather pattern is designed to achieve that the body is not easy to move back and forth during acceleration and braking Shift, long-distance travel is as soft and shock-absorbing as a sofa.

Pure-aluminum cylinder

The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

Fuel-saving and sporting dual mode

The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities. In the fuel-efficient mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000rpm if the cyclist needs to overtake under emergency.

Equipped with dual channel ABS

The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.

Lightweight aluminum alloy rim

The wide rim and hollow interior design ensure both the strength and toughness.

Hidden exhaust pipe /New Design Muffler

Hidden exhaust designed, beautiful and generous, preventing the driver from burning; the whole section is provided with special stainless steel of automobile grade to exhaust, which is resistant to high and low temperature and corrosion, and ensures long service life; GB IV standard for motor vehicle pollutants makes it safer and more environmentally friendly.
The exhaust pipe and muffler have the increased volume and the newly optimized air flow and sound-proof structure to better meet noise reduction and emission requirements, and ensure smooth emission at a low speed-torque range.

Gasoline tank with galvanized liner

Eliminate the clogging of intake filter pulp and the leakage of gasoline tank due to rust.

Widened and heightened electric windshield

The widened and heightened electric windshield, in line with aerodynamics, effectively reduces the head-on wind and makes the wind blow over the top of the head; fully-exposed aluminum alloy rocker arm with mechanical beauty.

180 Ultra wide radial tire

180 rear wheels, with a larger grasp area and aggressive appearance, allowing ordinary people to bend as smoothly and steadily as drivers.

Low sitting height

For the convenience of men and women who are not tall enough, 765mm sitting height matches the excellent ergonomic design of the front of the cushion. Even knights who are only 1.6 meters tall can land on both feet

Standard bumper

Strong standard steel pipe bumper that integrating with the body into one, protecting you and love car the safety in driving, and allowing you to drive carefreely

Large-area Water Cooling Radiator

The integral large-area water cooling radiator is characterized by large windward heat dissipation area and sufficient heat exchange power, ensuring high-speed riding without worrying about temperature soaring. Equipped with ¦Õ 140mm self-suction radiator fan, it provides a good enough heat dissipation effect to respond to the temperature during low speed riding.

Oil Cooling Radiator

The oil cooling radiator is used as the oil cooler to increase the heat dissipation area of the engine oil against the wind, and the air flow on the windward side takes away more heat; the oil bypass pipe is eliminated, and the oil circuit is unique, ensuring that all the oil is cooled by the oil cooling radiator.

New Design Air Filter

The volume of the 350 air filter is 30% larger than that of the 310 air filter. With the new muffler, it not only improves the low torque efficiency, but also greatly reduces the noise of the vehicle.

Radial Type Caliper/enlarged Disc Brake Plate

"The diameter of the front disc brake is increased to 320mm, and that of the rear disc brake is increased to 265mm, providing more powerful braking force and more linear hand feel of breaking. The front disc brake adopts the radial-type four-piston caliper to make emergency braking easier and effectively shorten the braking distance."

Sliding clutch

It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.

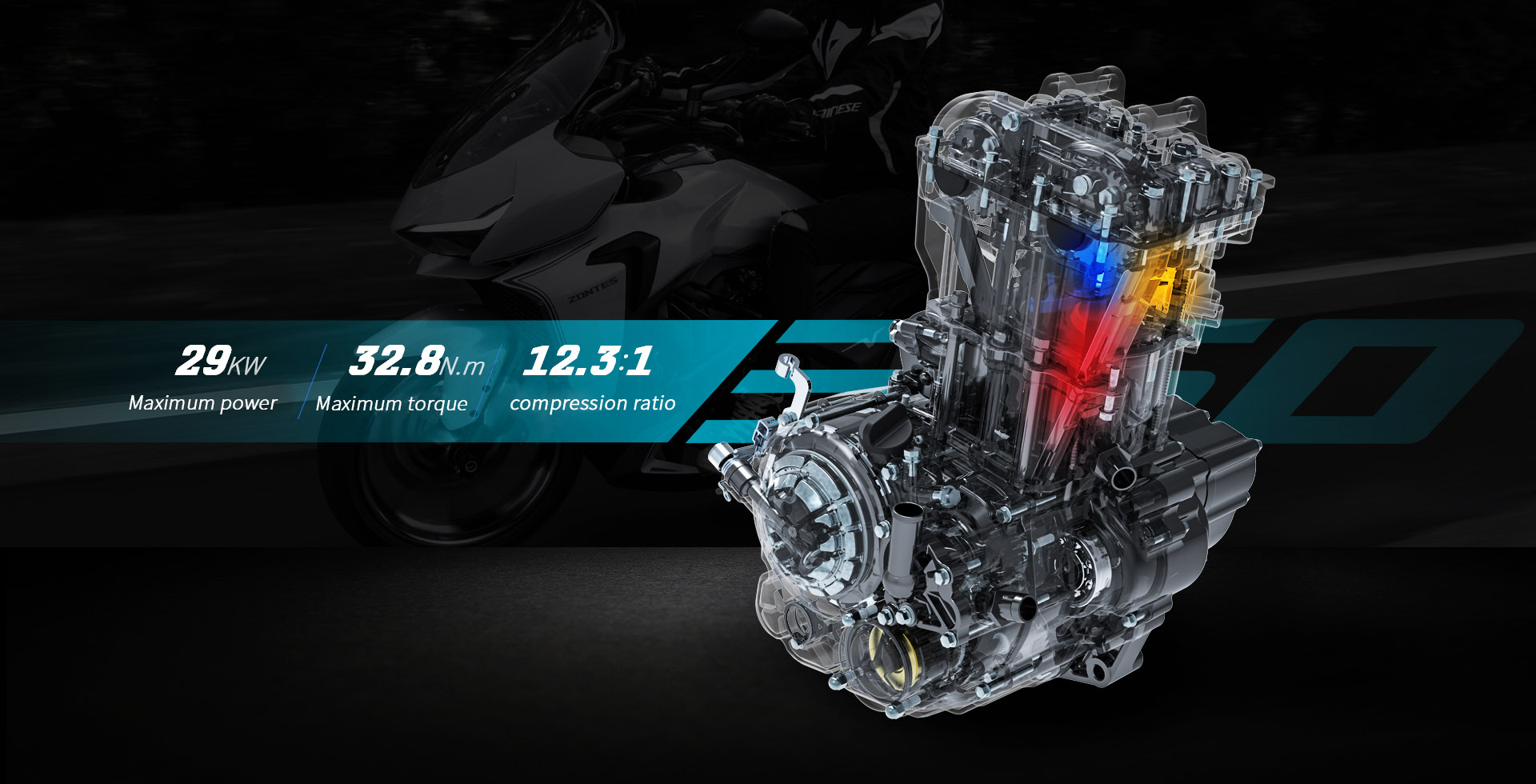

High compression ratio engine

The ZT350 engine has a high compression ratio of 12.3:1, and a low fuel consumption can get a 29KW, 32.8N.m power output. As the development trend of the advanced technology of internal combustion engine in the world, high compression ratio engine is characterized by fuel-saving, environmental protection and high performance. In order to successfully use high compression ratio technology, it is necessary to overcome the technical difficulties in engine material, molding process, structural design and other aspects that are different from the ordinary engines.
