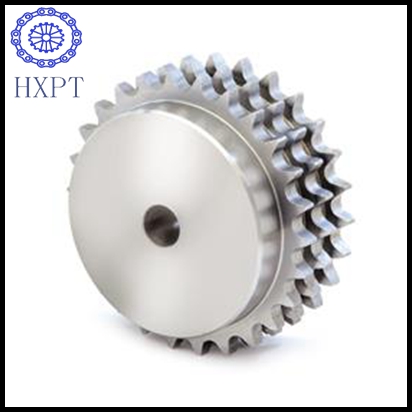

ASA 60-3 Triple Row Custom Sprocket
- Product Details
- Company Profile
Model: ASA Material: C45 Treatment: tooth quenching, black treatment. Packing: export standard export
A.S.A. 60-3
Triple-Row
3/4″ Pitch Triple
CatalogNumber | Numberof Teeth | TeetO.D. | Type | StockBore | Max.Bore | HubDia. | Lengththru Bore | Weightin Lbs. |
E60B011H | 11 | 3.00 | B | 1 | 1-1/4 | 2-1/16* | 3-1/4 | 2.5 |
E60B012H | 12 | 3.25 | B | 1 | 1-7/16 | 2-3/8* | 3-1/4 | 3.3 |
E60B013H | 13 | 3.49 | B | 1 | 1-1/2 | 2-1/4 | 3 | 3.9 |
E60B014H | 14 | 3.74 | B | 1 | 1-3/4 | 2-1/2 | 3 | 4.5 |
E60B015H | 15 | 3.98 | B | 1 | 1-7/8 | 2-13/16 | 3 | 5.4 |
E60B016H | 16 | 4.22 | B | 1 | 2 | 3 | 3 | 6.5 |
E60B017H | 17 | 4.46 | B | 1 | 2-1/4 | 3-1/4 | 3 | 7.7 |
E60B018H | 18 | 4.70 | B | 1 | 2-3/8 | 3-1/2 | 3 | 8.5 |
E60B019H | 19 | 4.95 | B | 1 | 2-1/2 | 3-11/16 | 3 | 9.3 |
E60B020H | 20 | 5.19 | B | 1 | 2-1/2 | 3-3/4 | 3 | 10.4 |
E60B021H | 21 | 5.43 | B | 1 | 2-3/4 | 4-1/8 | 3 | 11.8 |
E60B022H | 22 | 5.67 | B | 1 | 2-3/4 | 4-1/4 | 3 | 13.2 |
E60B023H | 23 | 5.91 | B | 1 | 2-3/4 | 4-1/4 | 3 | 14.6 |
E60B024H | 24 | 6.15 | B | 1 | 2-3/4 | 4-1/4 | 3 | 15.8 |
E60B025H | 25 | 6.39 | B | 1 | 2-3/4 | 4-1/4 | 3 | 17.0 |
E60B026 | 26 | 6.63 | B | 1 | 2-3/4 | 4-1/4 | 3 | 18.6 |
E60B030 | 30 | 7.59 | B | 1 | 2-3/4 | 4-1/4 | 3 | 23.2 |
E60B035 | 35 | 8.78 | B | 1-1/4 | 3 | 4-1/2 | 3-1/4 | 36.0 |
E60B036 | 36 | 9.02 | B | 1-1/4 | 3 | 4-1/2 | 3-1/4 | 37.0 |
E60B042 | 42 | 10.46 | B | 1-1/4 | 3-1/4 | 4-3/4 | 3-1/2 | 48.5 |
E60B045 | 45 | 11.18 | B | 1-1/4 | 3-1/4 | 4-3/4 | 3-1/2 | 56.6 |
E60C052 | 52 | 12.85 | C | 1-1/4 | 3-1/4 | 4-3/4 | 3-1/2 | 80.0 |
E60C060 | 60 | 14.76 | C | 1-1/4 | 3-1/4 | 4-3/4 | 3-1/2 | 92.0 |
E60C068 | 68 | 16.67 | C | 1-1/4 | 3-5/16 | 5 | 3-1/2 | 105.0 |
E60C072 | 72 | 17.63 | C | 1-1/4 | 3-5/16 | 5 | 3-1/2 | 11.0 |
E60C076 | 76 | 18.58 | C | 1-1/2 | 3-5/16 | 5 | 3-1/2 | 117.0 |
E60C095 | 95 | 23.12 | C | 1-1/2 | 3-3/4 | 5-1/2 | 4 | 146.0 |
*Hub diameter grooved for chain clearance.
Maximum bore allows for keyway & setscrew.
