Automatic Down Feather Bedding Filling Machine
- Product Details
- Company Profile
The 1st double nozzles automatic weighing & filling machine for quilt. It is suitable for small and medium home textile manufactures.
The automatic filling machine is mainly applied in the down quilt enterprises which have multispecies but small quantity orders. Using automatic weighing technology instead of original handwork and semi-auto equipment. It is the automation revolution of home textiles filling industry.
Details:
Brand: Bealead
Model: 1202B
Composed by: 1 feeding unit and 3 weighing units 1 filling station
Filling Pipes: 2
Scales by filling pipe: 3
Fillings by hour: 800 lattices
Application: Apparel, Commodity, Textiles
Material Application: 50%- 90% down
Weight: 1300kg
Filling Storage: 25kg
Weighing Range: 1g- 80g
Accuracy: 0.1g
Feeding Unit Size: 2.55* 0.9* 3.5m
Weighing Unit Size: 2.7* 0.66* 0.87m
Overall Size: 2.9* 4.7* 3.7m
Min. Site Area: 6m* 7m
Main Specification
Voltage | 380V | Air Tank | ≥2m³ |
Air Pressure | 0.6- 0.8MPa | Air Compressor Power | 11KW |
Min. Air Pressure | 0.5MPa | Air Compressor Exhaust | ≥1.6m³/min |
Max. Power | 4.5KW | Air Monitoring System | √ |
PPR Pipe | 1.5 inch | Down Returning System | - |
Pipe Distance | ≤20m | Humidity Control System | - |

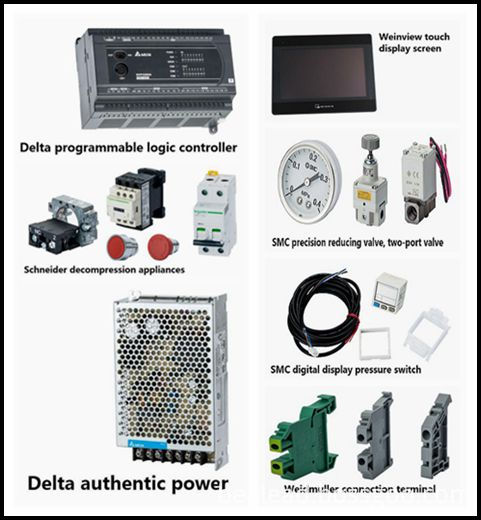

Accessories
Company Information
ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.
Our company is R&D manufacturer of intelligent device for clothing production. We are in leading
position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.
We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

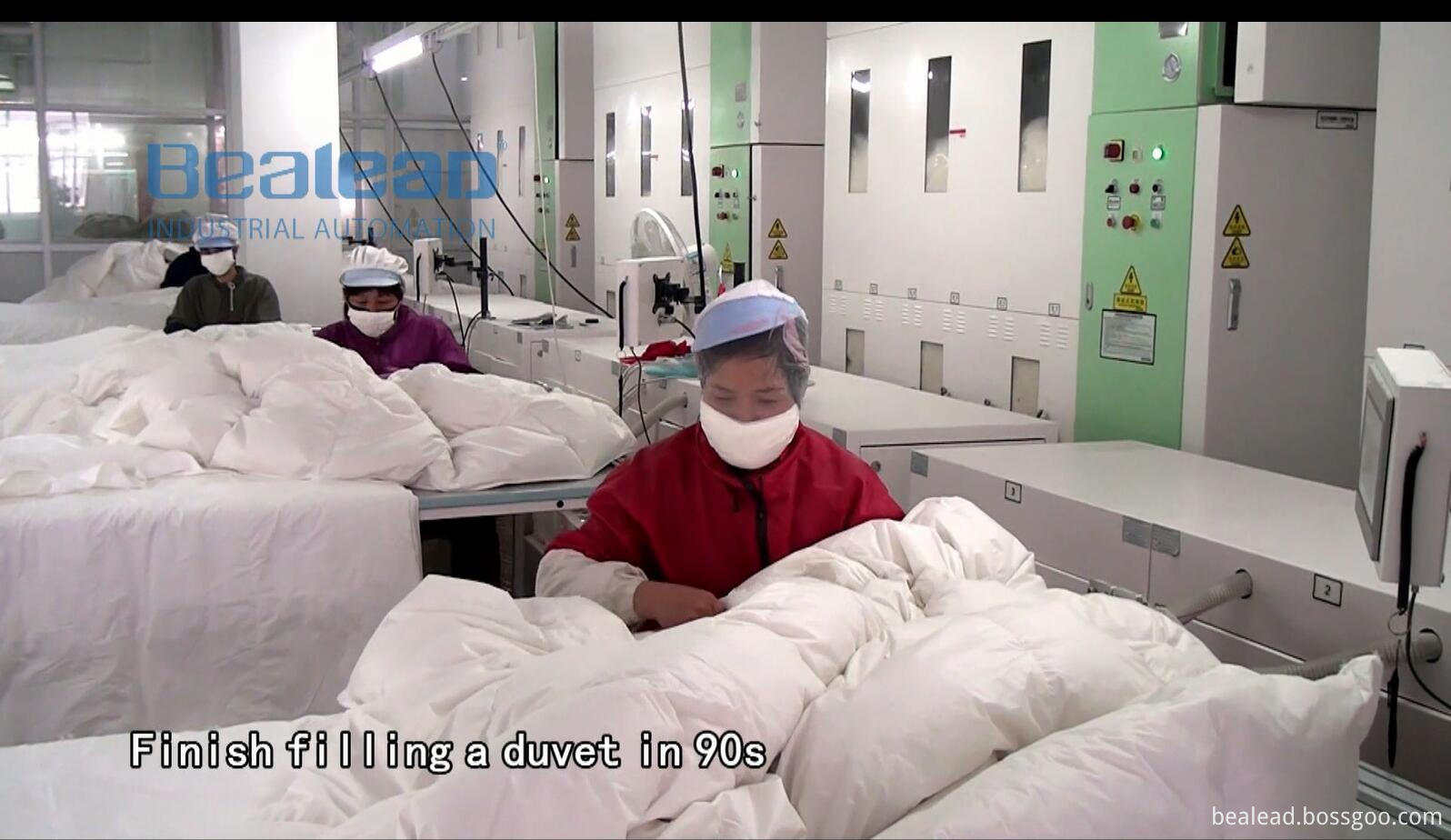

Our Factory
Exhibitions

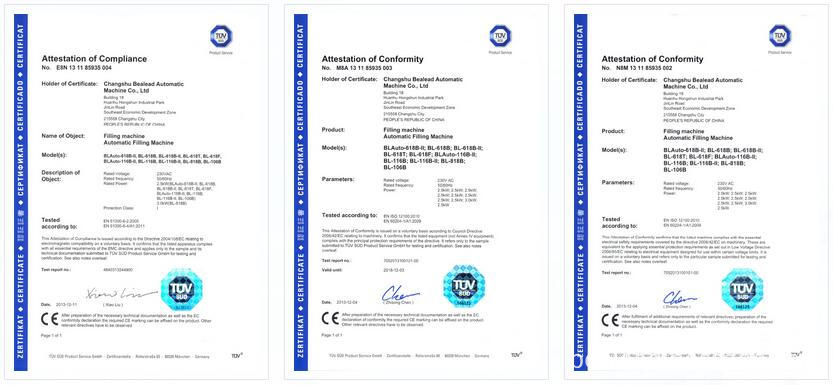

CE Certificate
