Series of Self-propelled Workover Rigs
- Product Details
- Company Profile

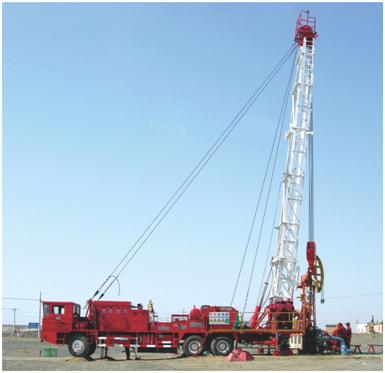

SJ Petroleum Machinery Company has developed series of workover rigs with maximum static load ranging from 300 to 2250kN ( 67440-505800 lbs ) and installed power ranging from 235 to 1300HP, including XJ150, XJ250, XJ350, XJ450, XJ550, XJ650, XJ1000 and XJ1200. The power system, drawworks system and driving system are all installed on a carrier, therefore it is easy for installation and movement. These rigs are suitable for workover operation for wells ranging from 1000 m to 9000 m , and for drilling operation for medium and shallow wells if equipped with a rotary table. A self-propelled workover rig is mainly composed of chassis, power and driving system, drawworks system, mast, hydraulic/air/electric control system and rotary system. The rig travelling and operation are all powered by a deck engine.
Model | XJ250(SXJ250) | XJ350(SXJ350 ) | XJ450(SXJ450) | XJ550(SXJ550 ) | XJ650(SXJ650) | XJ1000(SXJ1000) | XJ1200(SXJ1200) |
Workover depth: | 2000m(27/8〞DP) | 3200m(27/8〞DP) 2500m(31/2〞DP) | 4500m(φ27/8〞DP)3500m(φ31/2〞DP) | 5800m(27/8〞DP) 4500m(31/2〞DP) 3600m(41/2〞DP) | 7000m(27/8〞DP)5500m(31/2〞DP) 4200m(41/2〞DP) | 8000m(27/8〞DP) 6500m(31/2〞DP)5000m(41/2〞DP) | 9000m (27/8〞DP)7500m (31/2〞DP) 6000m (41/2〞DP) |
Nominal hook load: | 400kN | 600kN | 800kN | 1000kN | 1200kN | 1500kN | 1800kN |
Max. static load: | 675kN | 900kN | 1125KN | 1350kN | 1470kN | 1800kN | 2250kN |
Drawworks horsepower: | 250hp | 350hp | 450hp | 550hp | 650hp | 750hp | 1000hp |
Clearance height, mast | 21m | 31.7m | 34m | 34m | 35m | 38m | 39.3m |
Height, racking board (to rig floor) | 7.7m | 17.2m | 17.2m | 17.2m | 17.2m | 17.2m | 17.2m |
Floor height | 2.2m | 3.7m | 3.7m | 4.5m | 4.5m | 6m | 6.7m |
Traveling system: | 3×4 | 3×4 | 4×5 | 4×5 | 4×5 | 5×6 | 5×6 |
Drive type, carrier: | 6×6 | 10×8 | 10×8 | 10×8 | 12×8 | 14×8 | 14×10 |
Dia., wireline: | φ22mm | φ26mm | φ26mm | φ26mm | φ29mm | φ29mm | φ32mm |
Traveling dimensions | 15.4m×3m×3.85m(16m single stage mast)12m×3m×4.1m(18m double stage mast)13.4m×3m×4.1m(21m double stage mast) | 18.7m×3.1m×4.28m | 19.86m×3.1m×4.28m(34m mast) | 19.86m×3.1m×4.28m(34m mast) | 15.05m×3.2m×3.1m(without mast) | 16.03m×3.3m×3.2m (w/o mast) | 16.03m×3.3m×3.2m(w/o mast) |
Max. speed | 60km/h(Limiting speed: 45km/h) | 60km/h(Limiting speed: 45km/h) | 60km/h(Limiting speed: 45km/h) | 60km/h(Limiting speed: 45km/h) | 60km/h(Limiting speed: 45km/h) | 60km/h (Limiting speed 45km/h) | 60km/h (Limiting speed: 45km/h) |
Min. turning radius | 14m | 17m | 17m | 17m | 18m | 21m | 22m |
Traveling weight | 29400kg(Total weight varies according to different configurations) | 46000kg(Total weight varies according to different configurations) | 50000kg(Total weight varies according to different configurations) | 50800kg(Total weight varies according to different configurations) | 40000kg (without mast) | 54500kg (w/o mast) | 54500kg (w/o mast) |
Ambient temperature | -29 ~ +50 ℃ | -29 ~ +50 ℃ | -29 ~ +50 ℃ | -29 ~ +50 ℃ | -29 ~ +50 ℃ | -29 ~ +50 ℃ | -29 ~ +50 ℃ |
