Ventilation Fan Motor-YJ48
- Product Details
- Company Profile
Application: 1.Humidifier, Fan-Heater, Baking Oven,Air-Conditioner,Water Dispemser 2.It is safty and reliable, low noise, characteristics hard, good starting, long life, etc., 3.The series motor can be designed into four insulation class according to user requirements: that of E, B, F, H.
Model No. | A of Size(mm) | Voltage (VAC) | Frequency (Hz) | On Loading | |||
Input Current (A) | Input Power (W) | Speed (R/MIN) | Torque (mN.m) | ||||
YJ48-08 | 8 | 110-240 | 50-60 | 0.08 | 6.5 | 2500 | 2.3 |
YJ48-10 | 10 | 110-240 | 50-60 | 0.10 | 7.5 | 2650 | 3.5 |
YJ48-12 | 12 | 110-240 | 50-60 | 0.13 | 10.0 | 2800 | 6.3 |
YJ48-15 | 15 | 110-240 | 50-60 | 0.15 | 13.5 | 2300 | 6.7 |
YJ48-20 | 20 | 110-240 | 50-60 | 0.17 | 23.5 | 2400 | 10.6 |
YJ48-25 | 25 | 110-240 | 50-60 | 0.18 | 29.5 | 2450 | 16.3 |

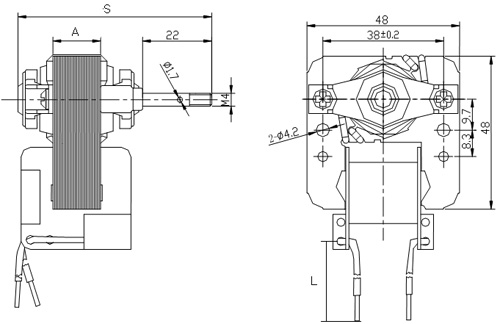

Note: 1.The Data is only reference,and the performance can be produced as your request; 2.The S (length of shaft) and L (Length of lead wire) is any length you demand. |
