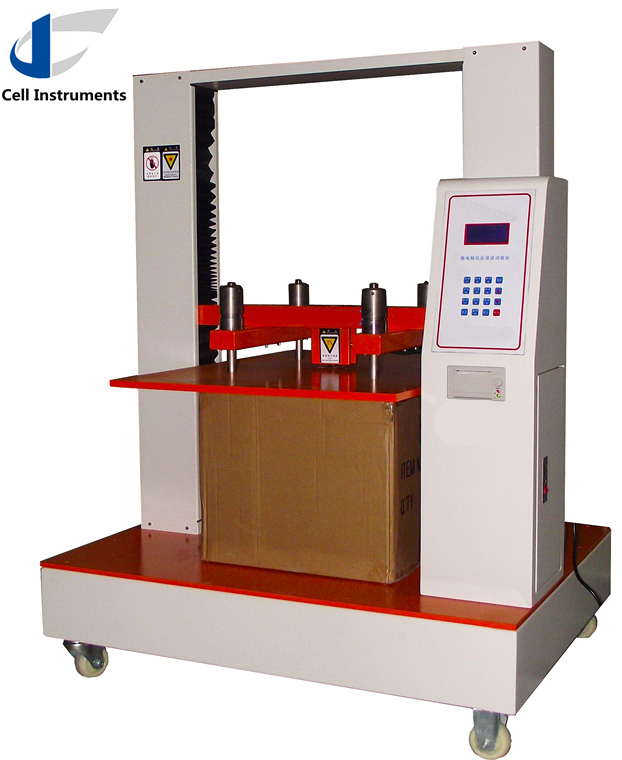

Box Compression Tester
Box Compression Tester
Box Compression Tester
Box Compression Tester

Member Details

Cell Instruments Co., Ltd.

Jinan,Shandong,China

Manufacturer

  • Product Details
  • Company Profile

LCD display, PVC operation manual, human design Microcomputer processing system, automatic measurement, test result intelligent judging, self-reture Microcomputer data collecting and computing, microprinter Real-time display of compression resistence force, deformation and changing curve Three test modes of compression resistence, stacking and compression at fixed time and pressure Synchronous motor Accurate thread lead screw drive system

Box Compression Tester is for the compression strength and stacking ability of medium and small size packaging like corrugated carton.

Box Compression Tester Technical Data

Pressure range: 0-10KN

Force resolution: 0.1NDisplay error: ±2%

Display variation: 2%Back to zero error: ±0.2%FS

Deformation measurement accuracy: ±1mm

Compressing speed adjustable range: 5mm/min90mm/min

Compressing speed relative error: ±3%(within 590mm/min)

Standard compressing speed: 12mm/min

Stacking test speed: 5mm/min

Lower platen stroke: 800mm

Test space: 400mm(L)*600mm(W)*600mm(H)

Upper and lower platen parallelism degree: 1mm

Dimension: 850mm(L)*600mm(W)*1100mm(H)

Weight: 200kg

Box Compression Tester Standards

ISO2874 Tappi T804
