A gade 240-255w polycrystalline solar panel
A gade 240-255w polycrystalline solar panel

A gade 240-255w polycrystalline solar panel

Add Favorites Send Inquiry

Member Details

ZHEJIANG GLOBAL PHOTOVOLTAIC TECHNOLOGY CO.,LTD

Shaoxing,Zhejiang,China

View More>
  • Product Details
  • Company Profile

solar panel 1.high efficiency & 10 years product warranty 2.100% TUV standard flash test 3.CE,TUV,UL 4.OEM accept



1.Solar panel  specifications



Specification
Maximum Power 240W 245W 250W 255W Wp
Power Tolerance ±3 ±3 ±3 ±3 %
Open circuit voltage 37.6 37.7 37.8 37.9 V
Optimum operating voltage 29.6 29.90 30.2 30.5 V
Short circuit current 8.54 8.6 8.66 8.72 A
Optimum operating current 8.11 8.19 8.28 8.35 A
Maximum system voltage 1000 1000 1000 1000 V  DC
Module efficiency 14.75 15.05 15.35 15.65 %
Voltage temperature coefficient -(0.35±0.01) -(0.35±0.01) -(0.35±0.01) -(0.35±0.01) %/k
Current temperature coefficient 0.03±0.01 0.03±0.01 0.03±0.01 0.03±0.01 %/k
Power temperature coefficient -(0.47±0.03) -(0.47±0.03) -(0.47±0.03) -(0.47±0.03) %/k
Information on CELL
Cell brand 　
Cell type polycrystalline silicon solar cell
Cell dimension 156*156 mm
Cell shape Square
Number of cell 60 series
Efficiency of cell 16.45 16.7 17.12 17.5 %
STC
AM condition AM1.5
Intensity of illumination 1000 W/m2
Temperature 25 °C
Business information
Payment term TT 30% in advance,and TT 70% after B/L copy
Contact mothed 　
Validity of price EXW 4RMB/W for 245W;EXW 4.1RMB/W for250w



Laminating data
Dimension Length(mm) 1640 mm
Width(mm) 992 mm
Thickness(mm) 40 mm
Installation dimension Length(mm) 410 mm
Width(mm) 946 mm
Weight 19 Kg
Frame Material  Clear anodized aluminium frame
Surface glass Toughed solar glass
Thickness of glass 3.2 mm
Laminating material  EVA 0.45
Backsheet material TPT 0.3
Packing&Transportaion Information
Packing  25 pcs/carton
Dimension of carton 1700*1100*1120 mm
Weight of carton 10 Kg
Loading for 20" container 12*25PCS carton*modules quantity
Loading for 40" container 28*25PCS carton*modules quantity
　 　 　 　
Maximum data
Operating temperature -40℃～+85℃ °C
Storage temperature -40℃～+85℃ °C
Instulation cut voltage 1000 DC
Maximum wind resistance 60m/s N/㎡ or max Km/h
Surface maximum load capacity 2400 Pa
Maximum hail load capacity 25mm 23m/s







2.Solar Panel Warranty

1) 10-Year product warranty,

2)10 years for 90% of warranted minimum power

3)25 years for 80% of warranted minimum power



3.Solar panel show

3.Packing &Exhibition



4.Certificates



5.Project case

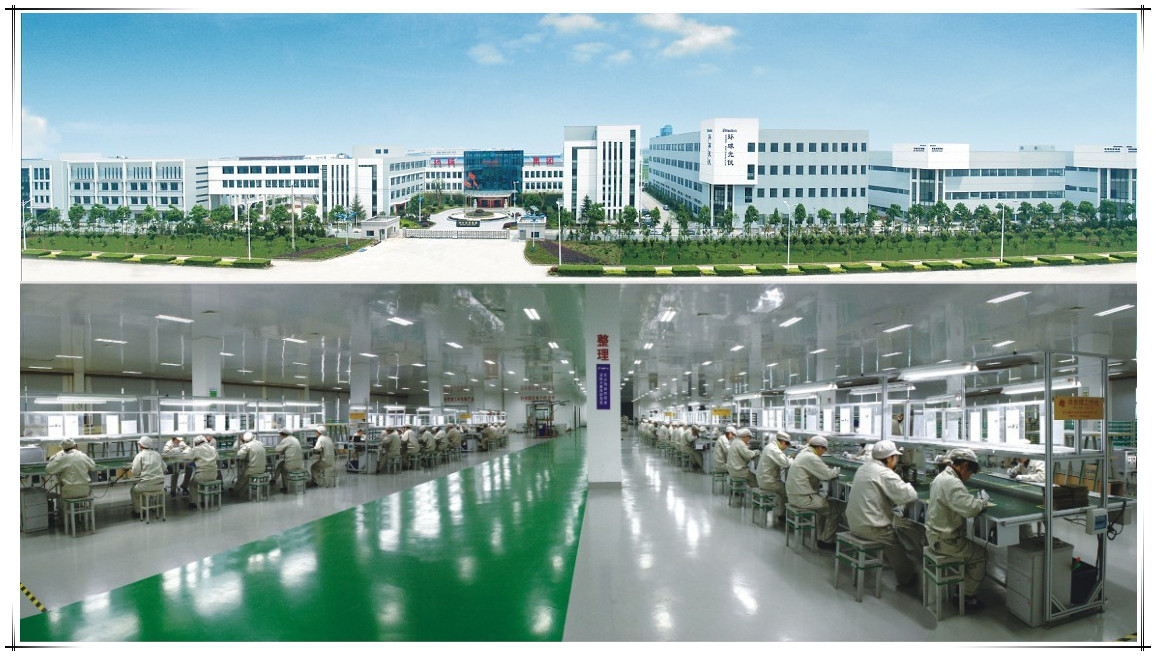

6.Our company
